Week 4 Group Assignment

3D Printer Parameter Test

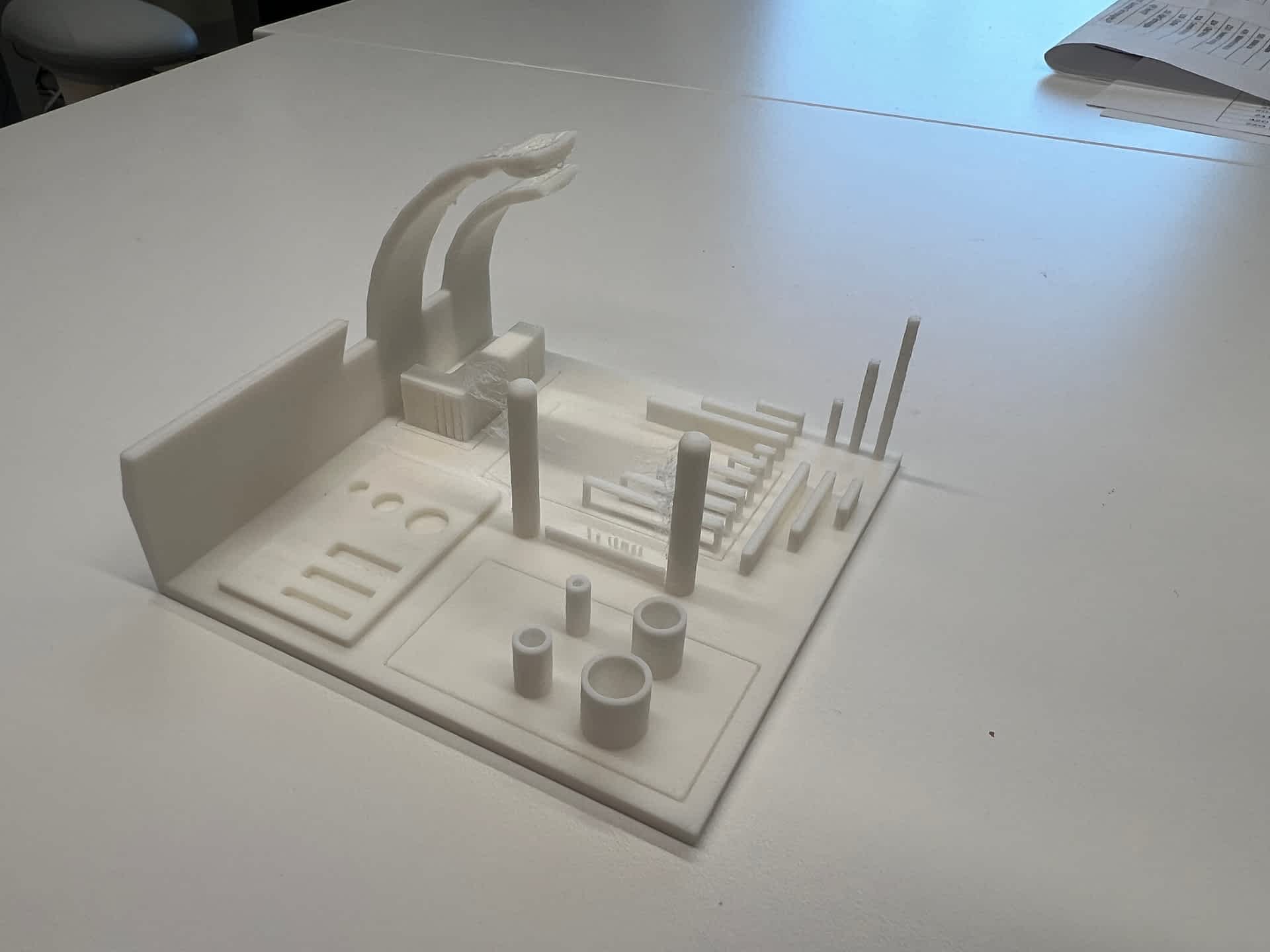

Using this model from printables we test multiple parameters of the BAMBU P1 printers.

We test the following parameters:

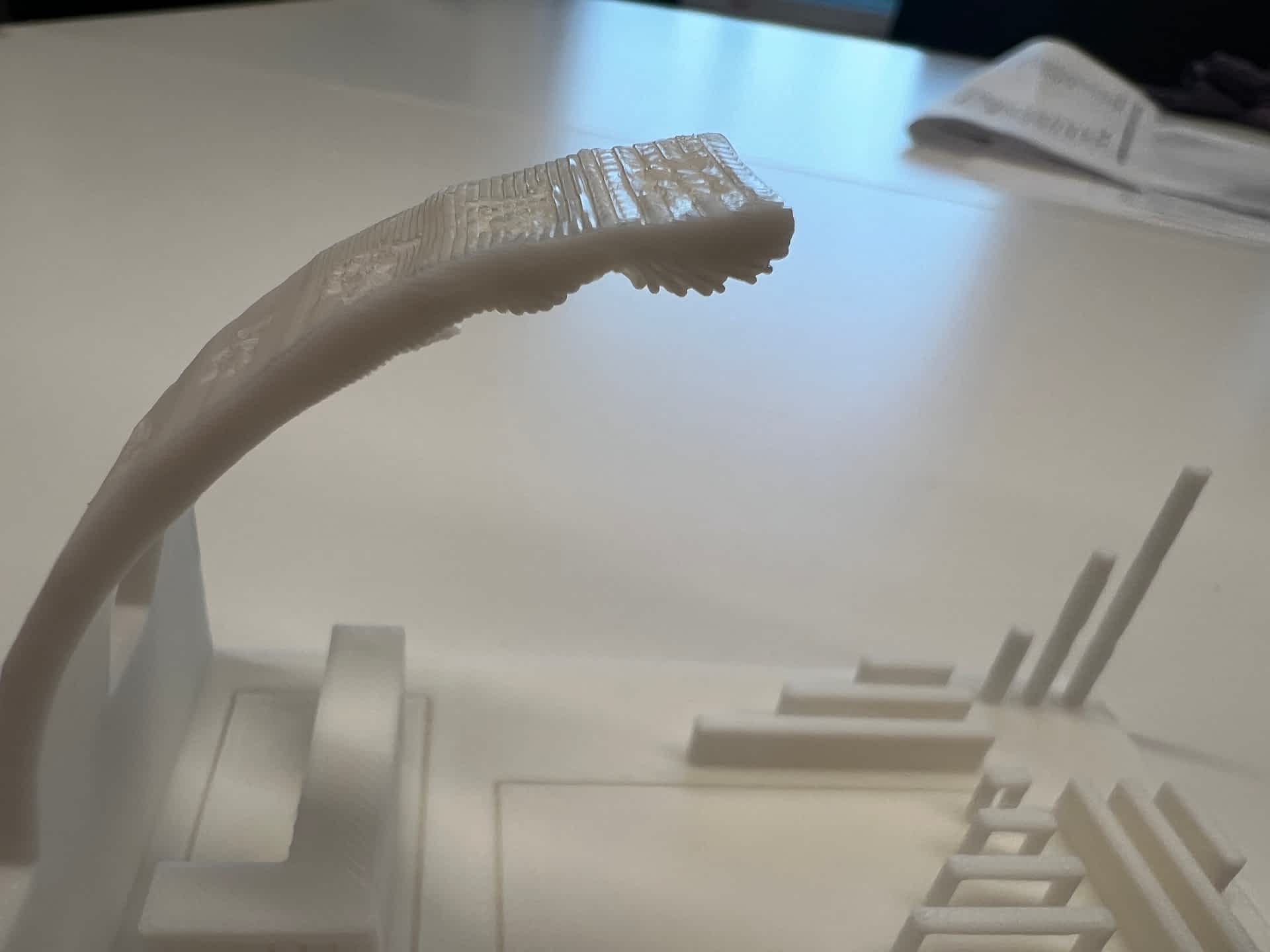

• Overhang Angle: at around 70 degrees, the print starts to fail. The layers start to fan out.

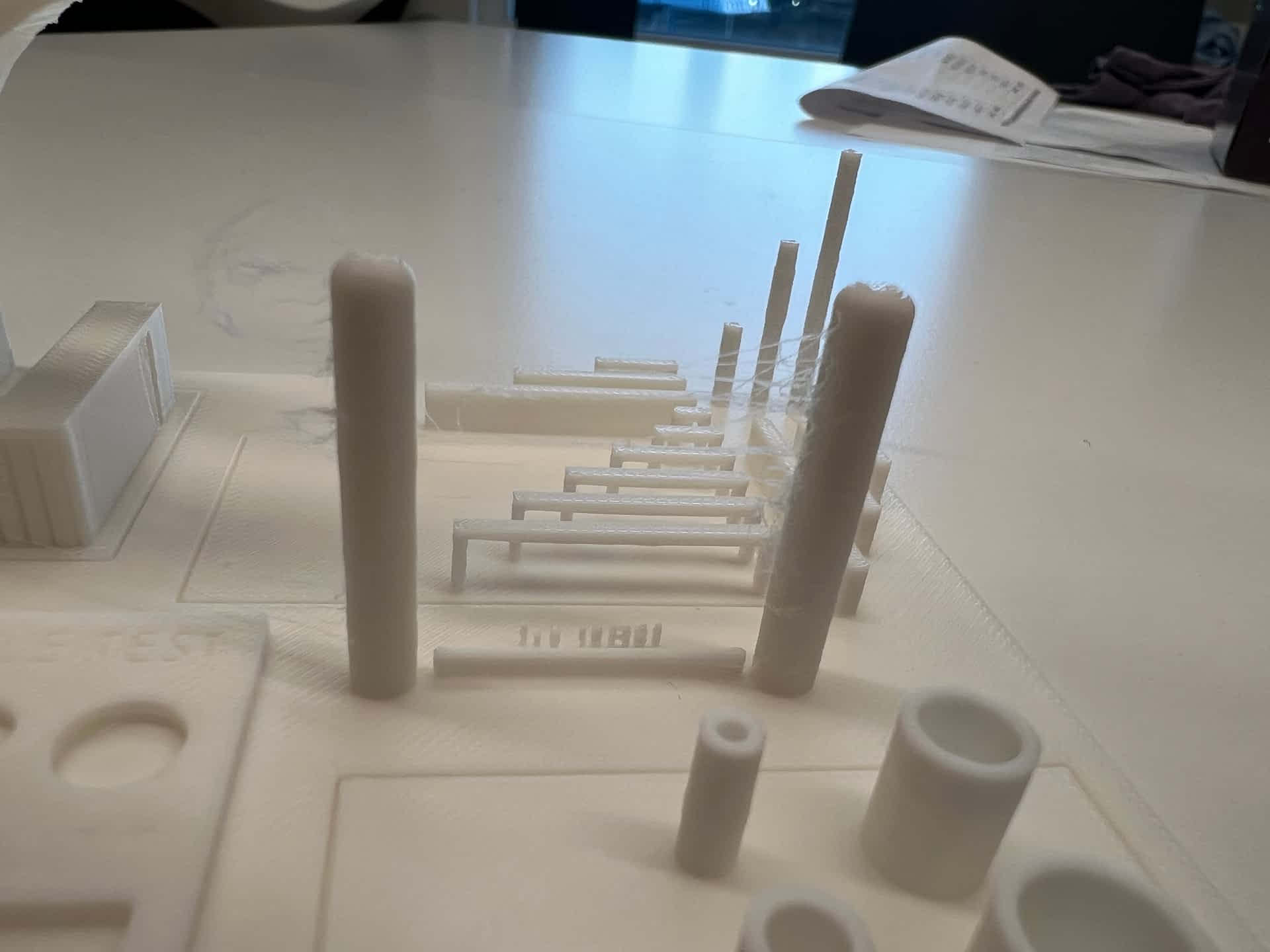

• Bridging: at around 25 mm between the supports, the print starts to fail and and strings start to form.
• Precision: based on the hole, tube, and wall tests. the printer is able to print reliably at thicknesses of 1mm and above. It is possible that this precision is finer, however the parameter test only measures up to 1mm.
