Week 05 · October 7 · Electronics design

Electronics design

Assignment

I am designing an embedded microcontroller board in KiCad, from parts in the Fab inventory. The group part of the week is to watch a microcontroller run on the lab's test equipment.

Second revision

I am building a breakout for the mill in the final project. It is the board a spindle sensor plugs into, so the machine can report spindle load.

This is the second revision of the board. I tried to make it cleaner by simplifying the input circuit to just the voltage divider and the RC low-pass filter. I kept the Seeed XIAO RP2040 and an indicator LED.

Schematic

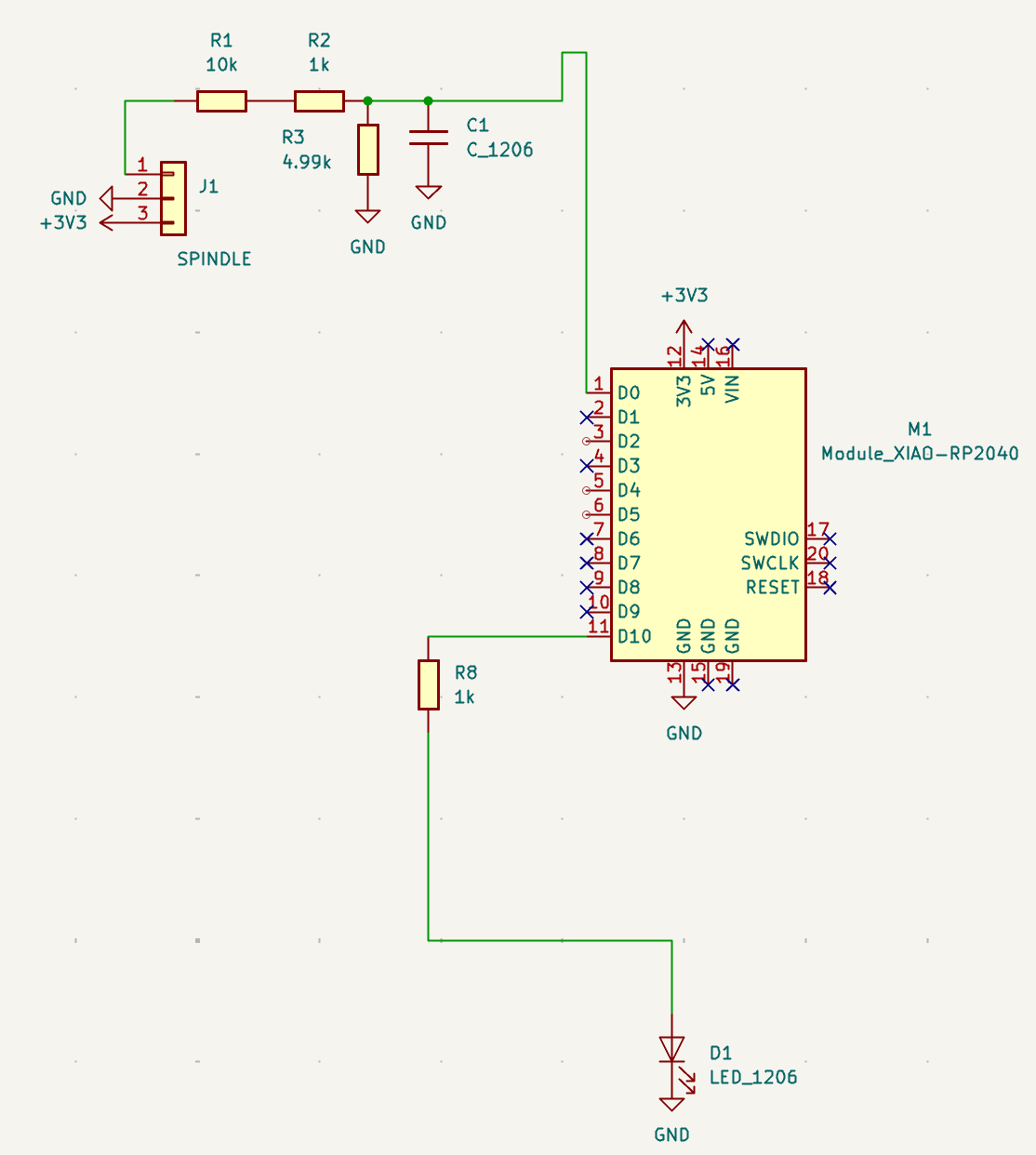

Revision two KiCad schematic with a spindle input, voltage divider, filter capacitor, XIAO RP2040, and indicator LED
Second-revision schematic in KiCad.

Footprints and layout

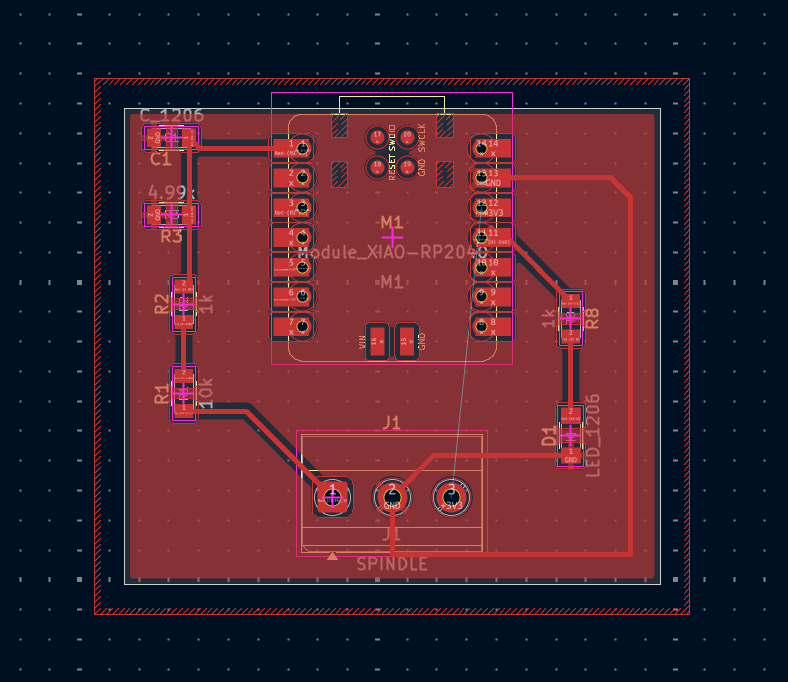

Revision two PCB layout with the XIAO footprint near the top, input components on the left, spindle connector at the bottom, and LED on the right
The second revision's footprints and copper layout.

3D preview

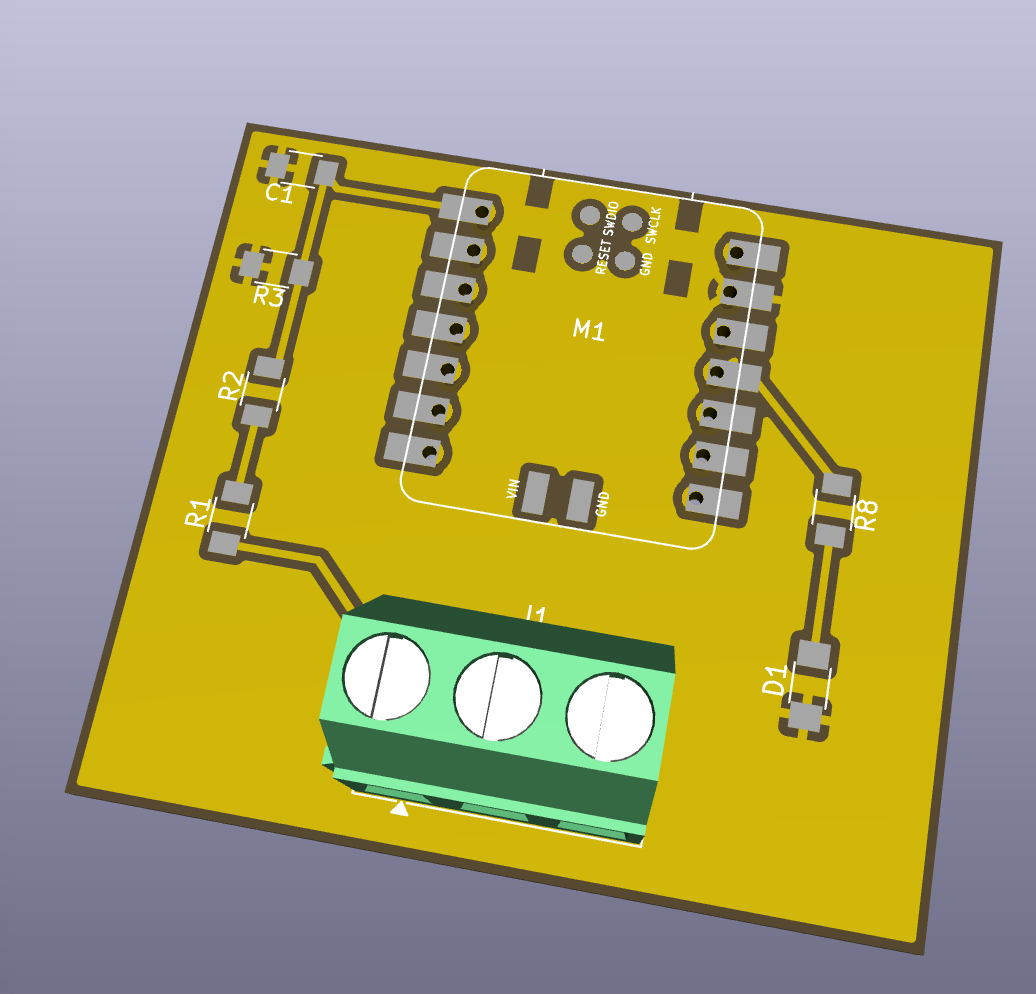

KiCad 3D preview of the second-revision board with a three-position screw terminal, XIAO footprint, and surface-mount pads
3D render of the second revision.

The process continues on the electronics production page.
